Vacuum forming machine

Model No.
Made in
Request for Quotation


    • Product Type:Fast Food Box,Plastic Box
    • machine size:2650 mm x 1830 mm x 2360 mm

    Key Features

    This machine fit for skin packing,calendars are prepared from PVC and various of blister which formed by vacuum.

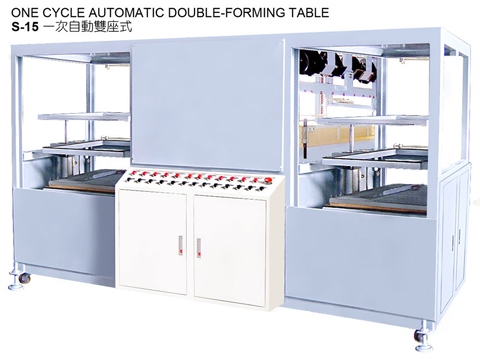

    It's one cycle automatic double-forming table. When a cycle of skin packing/vacuum forming is finished,taking out the product manually.

    The forming of printed products also use these machine which is ordered. It use one machine heater power consumption, but have heater two sets of machine out put capacity when use this machine will have lower power consumption cost.

     Model S-15
     Max. Forming area 570 x 800 mm, 2 Sets
     Max. Depth 120 mm
     Temperature Control --------------
     Heater Rod Heater
     Max. Load of Heater 11.8 KW
     Mechanical dimensions 2650 x 1830 x 2360 mm
     Machine floor space 4.9 Square meter
     Wooden case 480 Cuft/ 13.58 CBM
     Weight 1400 Kgs
     Vacuum pump 3 HP
     Air compressor (Min.) 3 HP
     Air compressor (Best) 5 HP
     Best range of material thick 0.1~1 mm Plastic roll / Board
     Max material thickness Up to 4 mm Plastic board
     Usable material Thickness PVC, HIPS, PS, OPS, ABS, APET, GPET, PP, PE...etc sheet.

    If you want to realize more information,or watch the operation video of our machine, please send email to our business address: sunjau@sunjau.com.tw

    Thank you.
