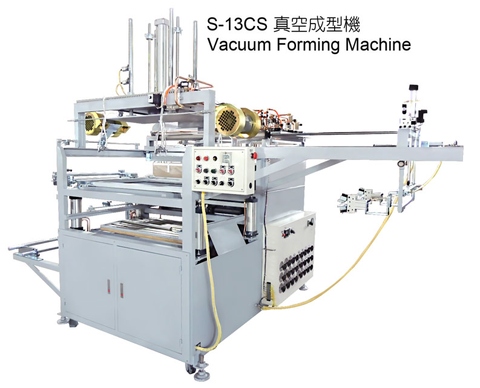

Thermoforming machine(Vacuum forming machine)

S-13CS

Taiwan vacuum forming machine manufacturers.

This machine have double heater to heating the sheet from upside and underside of the sheet. It suitable for both thin and thick board forming. The material loading is able to use by roll or board.

It can mass produce packing blister, disposable food container, biscuit tray, ceiling. And it can use sheet materials contain PVC, PS, ABS, PET to make various kinds of boxes, cases, such as cake boxes, meal boxes, toys, sanitary wares, etc.

It also fit to make decoration on soft PVC, for making the special decoration on sheet surface. Such as the cone for speaker or PVC sheet make bag, that kinds of sheet surface have some small decoration will able to make by this method also.

This machine could automatic forming the roll sheet. It also able to use board sheet to loading pieces by pieces.



specification as the following:

 Model S-13CS
 Max. Forming Area 1005 × 1005 mm
 Max. Depth 120 mm
 Temperature Control 30 Divisions
 Heater Rod Heater
 Max. Load of Heater Upper: 30 KW, Lower: 25 KW
 Weight 2200 kg
 Mechanical Dimensions  L: 2850 × 3520 × 2880 mm
 Air Compressor 10 HP
 Vacuum Pump 5 HP
 Wooden Case 540 CUFT / 15.27 M3
 Best Range of Material Thickness 0.1~4 Roll / Board
 Max material Thickness According material, some up to 4 mm.
 Usable Material Thickness PVC, HIPS, PS, OPS, PET, ABS, PP, PE, ACRYL, EVA, PC...etc sheet.
 Operator training training your operator for operation, maintenance, mould making. We will offer lunch/dinner free of charge during training time.
 Accessories 1. Vacuum pump.
 2. Operation manual.
 3. Spare part. (Export only)
 4. Vacuum pipe.
 5. Power input cable.



If you want to realize more information, or watch the operation video of our machine, please send email to our business address: sunjau@sunjau.com.tw

Thank you.


SUGGEST CO., LTD.
Address: 67-1 TA POO ROAD, CHANGHUA, TAIWAN, R.O.C
彰 化 市 大 埔 路 67-1 號
TEL: 886-4-7111167, 7111168, 7110728
FAX: 886-4-7111169,
E-mail 1: sunjau@sunjau.com.tw
E-mail 2: sunjau@ms17.hinet.net
