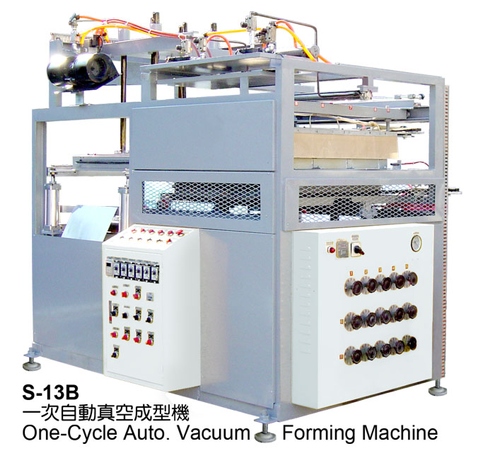

Thermoforming machine(Vacuum forming machine)

S-13B

This machine have double heater to heat the sheet from upside and underside of the sheet. It suitable for both thin and thick board forming.

The material loading is able to use by roll or board.

It also fit to make decoration on soft PVC, and make the special decoration on sheet surface. Such as PVC sheet make bag, that kinds of sheet surface have some small decoration.

This machine is one cycle automatic single-forming table, the production need to take out from the forming area manually. We accept the special size order.



 Model S-13B
 Max. Forming area 600 × 800 mm
 Max. Depth 120 mm
 Temperature control 15 Division
 Heater Rod Heater
 Max. Load of heater Upper 11.8 KW,Lower 8 KW
 Mechanical L: 1980 × W: 2070 × H: 2880 mm
 Machine floor space 4.2 M2
 wooden case 420 Cuft. / 11.88 M3
 Weight 1500 kg
 Vacuum pump 2 HP
 Air compressor 5 Hp
 Best range of material thick 0.1~4 mm Plastic Roll / Board
 Max. Material thickness According material, some up to 4 mm.
 Usable material Thickness PVC, HIPS, PS, OPS, PET, ABS, PP, PE, ACRYL, EVA, PSP......etc sheet.
 Operator training Training your operator for operation, maintenance, mould making. We will offer lunch / dinner free of charge during training time.
 Accessories 1. Vacuum pump
 2. Operation manual
 3. Spare part (Export only)
 4. Vacuum pipe
 5. Power input cable



If you want to realize more information, or watch the operation video of our machine, please send email to our business address: sunjau@sunjau.com.tw

Thank you.

SUGGEST CO., LTD.
Address: 67-1 TA POO ROAD, CHANGHUA, TAIWAN, R.O.C
彰 化 市 大 埔 路 67-1 號
TEL: 886-4-7111167, 7111168, 7110728
FAX: 886-4-7111169
E-mail 1: sunjau@sunjau.com.tw
E-mail 2: sunjau@ms17.hinet.net
