Vacuum forming Machine

Model No.
Made in
Request for Quotation


    • Product Type:Fast Food Box,Plastic Box

    Key Features

    Applications: This machine can mass produce packing blister, disposable food container, biscuit tray, ceiling.

    And this machine can use sheet materials of PVC, PS, ABS, PSP, ACRYL into various kinds of boxes, cases, such as cake boxes, meal boxes, toys, food holders suitcases, auto parts, sanitary wares, etc.


    The advantage of this machine:

    (1) Average heating on sheet: Average Heating is very important on this kinds of machine. Our machine S-13A standard machine will able to work for PC material that cause the average heating.

    (2) Lower wastage of material: Our machine wastage of material compare with the other company machine will less about 5%.

    (3) Lower power consumption compare with the other company design. It is very important to save this kinds of invisible cost for a long time when operating this kinds of machine.

    (4) There has a filter for water inlet. It can leach impurities in water,and extend using life of spray gun.

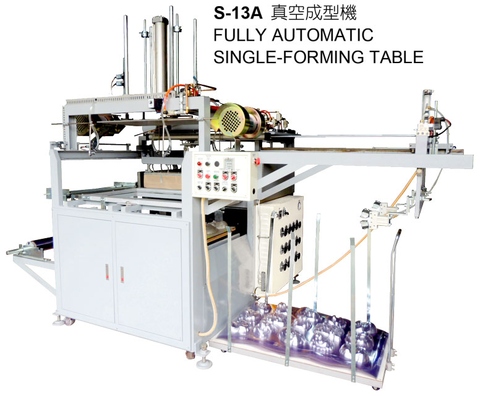

     Model S-13A
     Max. Forming area 570 x 1005 mm
     Max. Depth 150 mm
     Temperature control 15 Divisions
     Heater Rod Heater
     Max. Load of heater 26.3 KW
     Mechanical L: 1940 x W: 3300 x H: 2360 mm
     Machine floor space 9.8 M2
     Wooden case 420 Cuft./ 11.88 M3
     Weight 1700 Kg
     Vacuum Pump 3 HP
     Air Compressor (Min.) 3 HP
     Air Compressor (Best) 5 HP
     Best range of material thick 0.1~1 mm roll
     Max. material thickness Up to 4mm plastic board
     Usable material thickness PVC, HIPS, PS, OPS, APET, GPET, ABS, PP, PE, ACRYL, PC...etc sheet.
     Operator training Training your operator for operation, maintenance, mould making. We will offer lunch / dinner free of charge during training time.


     1. Vacuum pump
     2. Operation manual
     3. Spare part (Export only)
     4. Vacuum pipe
     5. Power input cable


    If you want to realize more information,or watch the operation video of our machine, please send email to our business address: sunjau@sunjau.com.tw

    Thank you.
