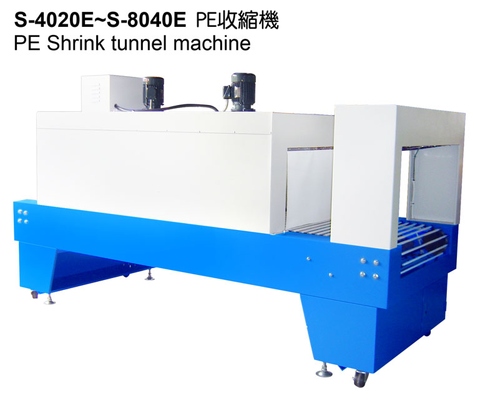

Shrink Tunnel Machine

Model No.
S4020E~S-8040E
Made in
Taiwan
Request for Quotation

    Spec

    • Application:Commodity,Machinery & Hardware
    • Driven Type:Electric,Manual,Mechanical

    Key Features

    1. This series machine adopts heat circulating type tunnel which will have average heating temperature. It has a longer heating oven which is fit the PE film shrink action.

    2. The cooling fan is installed in the exit of shrink packaging machine in order to accomplish the perfect shrinking effect.

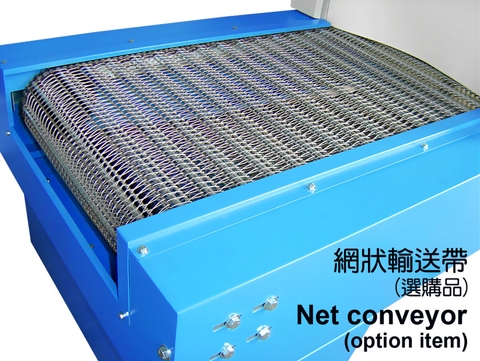

    3. There are two conveyor models to choice—roller type and net type, suitable for big and small products. The net type is option item.

    4. Special designed for PE film packaging. It could also shrink PVC, PP, POF......etc material. But this type of machine cost higher.

    5. Auto temperature control can be adjusted for desired temperature.

    6. Conveyor speed is adjustable.



     Model Machine Size Watts Shrinking Size Oven Long
     S-4020E 2400 x 770 x 1430 mm 12 KW 400 x 200 mm 1500 mm
     S-6030E 3000 x 970 x 1570 mm 24 KW 600 x 300 mm 1800 mm
     S-8040E 3000 x 1170 x 1550 mm 36 KW 800 x 400 mm 2000 mm



    If you want to realize more information,or watch the operation video of our machine, please send email to our business address: sunjau@sunjau.com.tw

    Thank you.
