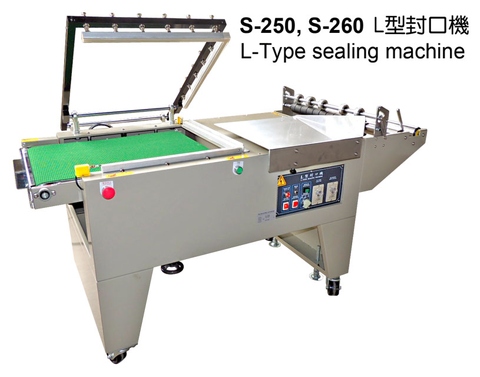

L-type sealing machine

S-250, S-260


Taiwan sealing machine manufacturers.


Features:
1. The L-type sealer uses the folding type of shrink film in roll shape. It need manual to loading the production for sealing. It is designed with automatic delivery. The products are sent into the shrink packaging machine automatically after process of sealing & cutting is finished.

2. The sealing device is action by a pneumatic cylinder. We need manual to put the packing article into the middle of the shrink film then push the start button to let the sealing frame downward to sealing the film and after the heating time. It will open the sealing device in auto.

3. The sealing & cutting control is using of instantaneous heating. Speedy sealing & cutting, electricity saving. Available to change the sealing time & cutting and temperature required upon the thickness of plastic film.

4. 3 sections temperature control (high, middle, low) keeps the sealing line in good situation.

5. Conveyor height for L-type sealer can be adjusted. Its sealing height can be adjusted depends on product’s size in order to made a prefect sealing effect.

6. Customized specifications are available for large products.

7. The standard is impulse heating type sealing method. We also accept the direct heating type order when you have any necessary.


 Model S-250 S-260
 Power Single phase
220V / 230V / 240V
 Single phase
220V / 230V / 240V
 Power consumption 1200W 1500W
 Sealing frame size L: 500 × W: 500 × H: 10~250 mm L: 600 × W: 600 × H: 10~300 mm
 Convey speed 0~10 M/min 0~10 M/min
 Conveyor size W=475 mm W=575 mm
 Working table height H=800+50 mm H=800+50 mm
 Machine size
 L: 1700 × W: 900 × H: 1050 mm
 L: 1900 × W: 1000 × H: 1050 mm


If you want to realize more information, or watch the operation video of our machine, please send email to our business address: sunjau@sunjau.com.tw

Thank you.

SUGGEST CO., LTD.
Address: 67-1 TA POO ROAD, CHANGHUA, TAIWAN, R.O.C
彰 化 市 大 埔 路 67-1 號
TEL: 886-4-7111167, 7111168, 7110728
FAX: 886-4-7111169
E-mail 1: sunjau@sunjau.com.tw
E-mail 2: sunjau@ms17.hinet.net
