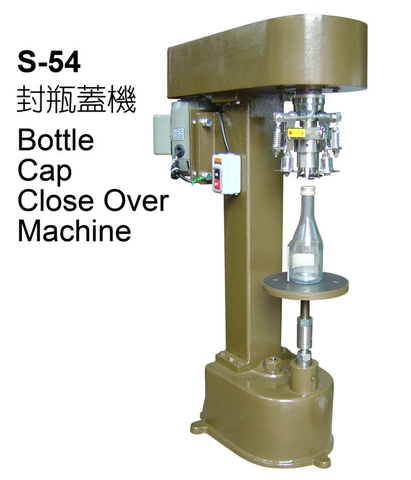

Capping machine

Model No.
S-52, S-53, S-54
Made in
Taiwan
Request for Quotation

    Spec

    • Application:Commodity,Food
    • Driven Type:Electric,Mechanical

    Key Features

    This machine is used for aluminum cap make screw or tied the bottom decoration.

    Feature :
    1. Easy adjusting for various size bottles.
    2. The mould is quite cheap.
    3. Quiet when it is working.
    4. Suitable for the factory which have various production line, sample making, small or medial producing capacity.
    5. Application: It suitable for the aluminum cap used on wine, glass bottle, injection bottles, plastic bottle, iron bottle, perfume bottle.
    6. High quality which have steady order from japan.



     Model S-52 S-54
     Capacity 20-25 PCS/Min. 20-25 PCS/Min.
     Electric Power Required 1/4 HP 1/4 HP
     Mechanical Dimensions (LxWxH) 310 x 620 x 800 mm (about) 310 x 620 x 930 mm (about)
     Max. Closing Diameter 50 mm 50 mm
     Max. Closing Height 180 mm 330 mm
     Min. Closing Height 80 mm 220 mm
     Min. Closing Height (option) 50 mm 50 mm
     Weight 85 Kgs (about) 95 Kgs (about)

    If you want to realize more information,or watch the operation video of our machine, please send email to our business address: sunjau@sunjau.com.tw

    Thank you.
