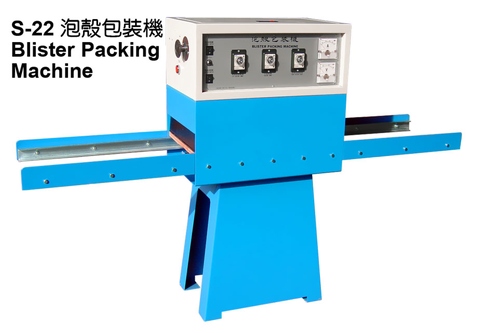

Blister packing machine

S-22

Taiwan blister packing machine manufacturers.

It is used for pack plastic blister with card board, aluminum sheet or plastic sheet. These machine have two kinds of packing way, one is direct heating type, another is instant heating type.

We had to put the plastic blister, goods for packing and card board on the mould by hand.



The advantage of instant heating type :

sealing the cardboard with PVC/PET blister instantly, and the cardboard will not deform. The products can sealed perfectly by blister.



S-22:

1.Mould move in and move out of the packing area: by manually.

2.Discharge the product: by manually.



 Specification / Model S-22
 Air Compressor
 (Item by order)
 1/4 HP
 Heater Impulse Type (Avg.) 250 W
 Heater Impulse Type (Max.) 1.5 KW
 Direct Heating Type  2 KW
 Mechanical Dimensions
 (L × W × H)
 1900 × 510 × 1220 mm
 Weight 95 Kg
 Mould Size 380 × 600 mm
 Max. Packing Depth 100 mm
 Max. Packing Pressure 500 Kg
 Air Consumption
 (Liter / Minute)
 50 L/Min.
 Max. Packing Stroke (Depth) 50 mm
 Max. Packing Stroke (Long) 600 mm
 Max. Moulds installed
 (pcs mould /machine)
 2 PCS
 Min. Moulds installed
 (pcs mould /machine)
 1 PCS



 * We accept the special size order.


If you want to realize more information, or watch the operation video of our machine, please send email to our business address: sunjau@sunjau.com.tw

Thank you.


SUGGEST CO., LTD.
Address: 67-1 TA POO ROAD, CHANGHUA, TAIWAN, R.O.C
彰 化 市 大 埔 路 67-1 號
TEL: 886-4-7111167, 7111168, 7110728
FAX: 886-4-7111169
E-mail 1: sunjau@sunjau.com.tw
E-mail 2: sunjau@ms17.hinet.net
